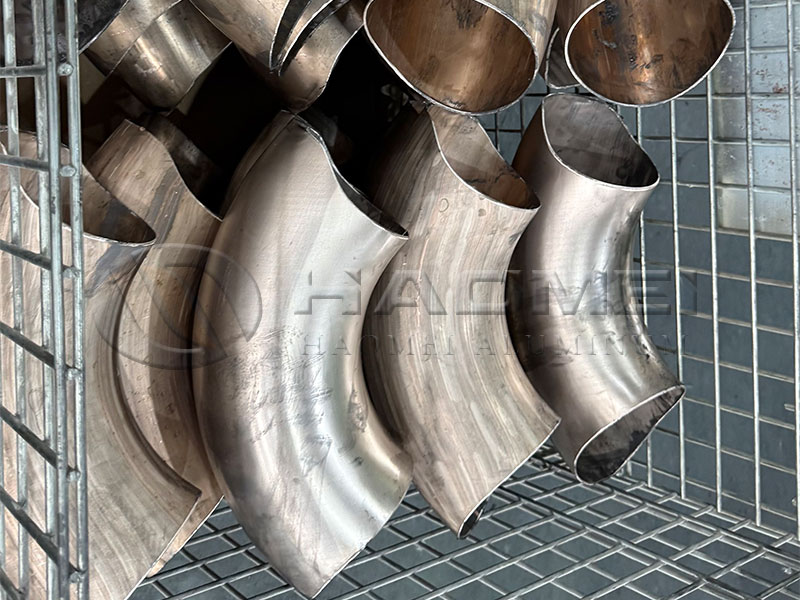

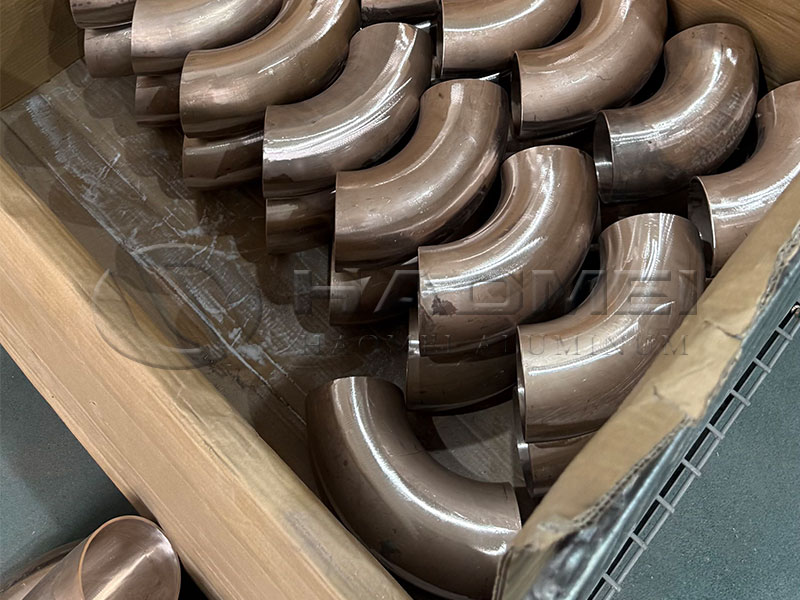

90° Long Radius CuNi Elbow
- GradeCuNi 90/10, C70600, CuNi10Fe1Mn
- RadiusLong radius, commonly 1.5D
- Size Range1/2" - 36" or customized
- Wall ThicknessMatched with connected CuNi pipe
90° Long Radius CuNi Elbow is used to change the direction of copper nickel seawater piping systems with smooth flow transition and reduced pressure loss. Manufactured from C70600 CuNi 90/10 alloy, it is suitable for marine and offshore seawater service.
The long radius design is commonly used in seawater cooling systems, fire main systems, ballast lines and offshore utility water piping where stable flow performance is required.
| Attribute | Technical Specification |
|---|---|
| Material Grade | CuNi 90/10, C70600, CuNi10Fe1Mn |
| Product Type | 90° long radius elbow |
| Radius | Long radius, commonly 1.5D |
| Size Range | 1/2" - 36" or customized |
| Wall Thickness | Matched with connected CuNi pipe |
| Standards | EEMUA 146, DIN 86088, DIN 86089, ASME B16.9 or project standard |
| Manufacturing Process | Cold forming, hot forming or welded fabrication |
| End Connection | Butt weld |
| Surface Treatment | Pickling and passivation |
| Testing | PMI, dimensional inspection, surface inspection, X-ray for welded type |
| Applications | Marine seawater cooling, fire water, ballast and offshore piping |
| Certificates | EN 10204 3.1 MTC, third-party inspection optional |
Product advantages
Smooth radius reduces turbulence and pressure drop.
Formed from genuine CuNi 90/10 material.
No sand holes, cracks or poor weld defects after inspection.
Accurate angle, end diameter and wall thickness.
Suitable for shipbuilding, repair and offshore projects.
