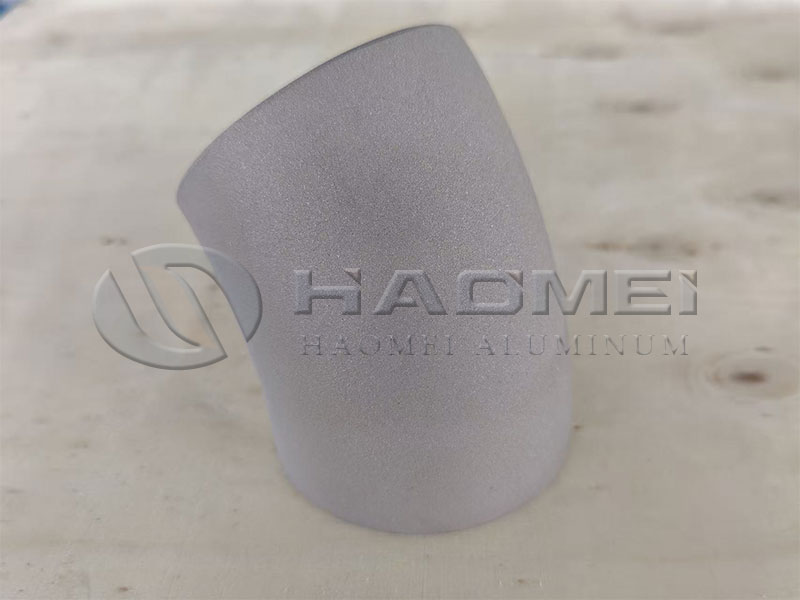

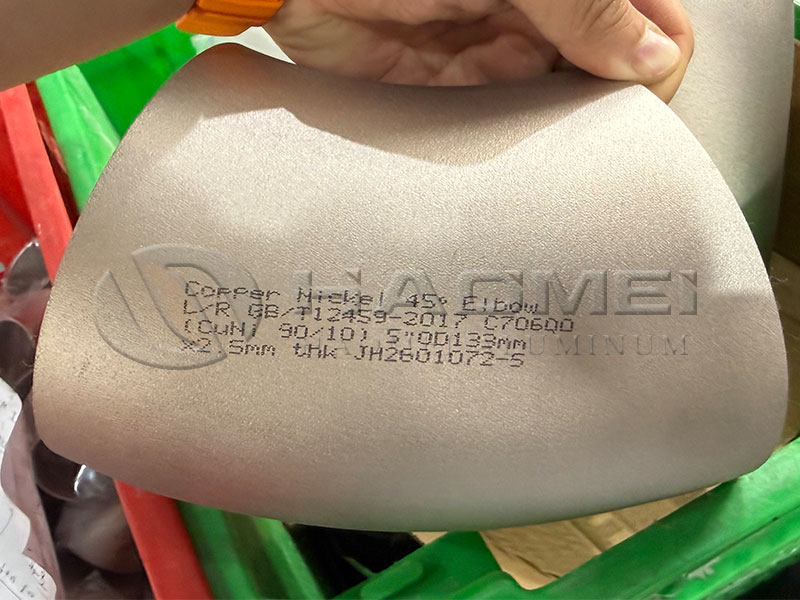

45° Long/Short Radius CuNi Elbow
- GradeCuNi 90/10, C70600, CuNi10Fe1Mn
- Product Type45° long radius elbow / 45° short radius elbow
- RadiusLR 1.5D or SR 1D
- Size Range1/2" - 36" or customized
45° Long/Short Radius CuNi Elbow is used for directional changes in copper nickel piping systems where a smoother or more compact pipe route is required. It is manufactured from CuNi 90/10 C70600 alloy and is suitable for seawater applications on ships and offshore units.
Long radius elbows provide smoother flow, while short radius elbows are useful for limited installation space. Both types can be supplied to match pipe dimensions and wall thickness.
| Attribute | Technical Specification |
|---|---|
| Material Grade | CuNi 90/10, C70600, CuNi10Fe1Mn |
| Product Type | 45° long radius elbow / 45° short radius elbow |
| Radius | LR 1.5D or SR 1D |
| Size Range | 1/2" - 36" or customized |
| Wall Thickness | Matched with connected pipe |
| Standards | EEMUA 146, DIN 86088, DIN 86089, ASME B16.9 |
| Manufacturing Process | Cold forming, hot forming or welded fabrication |
| End Connection | Butt weld |
| Surface Treatment | Pickling, passivation and anti-tarnish protection |
| Testing | PMI, dimensional inspection, NDT for welded type |
| Applications | Seawater cooling, fire main, ballast, bilge and offshore utility lines |
| Certificates | MTC supplied, class inspection optional |
Product advantages
Available in long radius and short radius types.
Excellent seawater corrosion resistance.
Accurate bend angle and end preparation.
Compatible with standard CuNi 90/10 marine pipe.
Custom radius and wall thickness available according to drawings.
