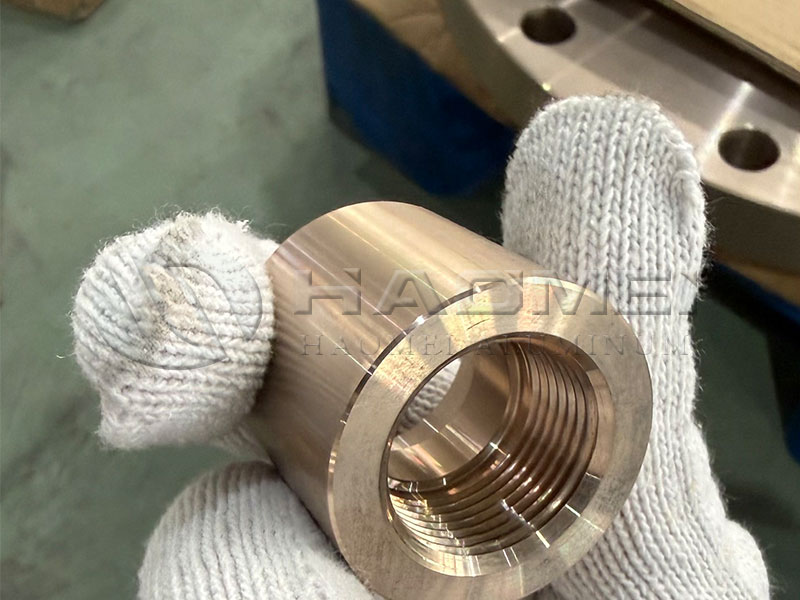

BSP CuNi Socket
- GradeCuNi 90/10, C70600, CuNi10Fe1Mn
- Product TypeBSP female socket
- Thread TypeBSPP or BSPT, according to order requirement
- Thread StandardISO 228-1, ISO 7-1 or project drawing
- Size Range1/4" - 4" or customized
BSP CuNi Socket is a female threaded copper nickel fitting used for connecting threaded pipes, nipples and small marine piping components. Manufactured from C70600 CuNi 90/10 alloy, it offers good corrosion resistance in seawater and humid marine environments.
This socket is suitable for small-diameter seawater lines, instrument connections, drain lines, auxiliary piping and ship repair applications.
| Attribute | Technical Specification |
|---|---|
| Material Grade | CuNi 90/10, C70600, CuNi10Fe1Mn |
| Product Type | BSP female socket |
| Thread Type | BSPP or BSPT, according to order requirement |
| Thread Standard | ISO 228-1, ISO 7-1 or project drawing |
| Size Range | 1/4" - 4" or customized |
| Manufacturing Process | Forging, casting-free machining or CNC machining from bar/tube |
| Surface Treatment | Pickling, passivation and anti-tarnish protection |
| Testing | PMI, thread gauge inspection, dimensional inspection |
| Applications | Marine seawater lines, auxiliary piping, drain lines and repair connections |
| Certificates | MTC supplied, third-party inspection optional |
Product advantages
Accurate BSP thread for tight engagement.
No slipping thread when properly installed.
Corrosion-resistant CuNi 90/10 material.
Compact design for ship repair and maintenance.
Custom length, thread type and size available.
