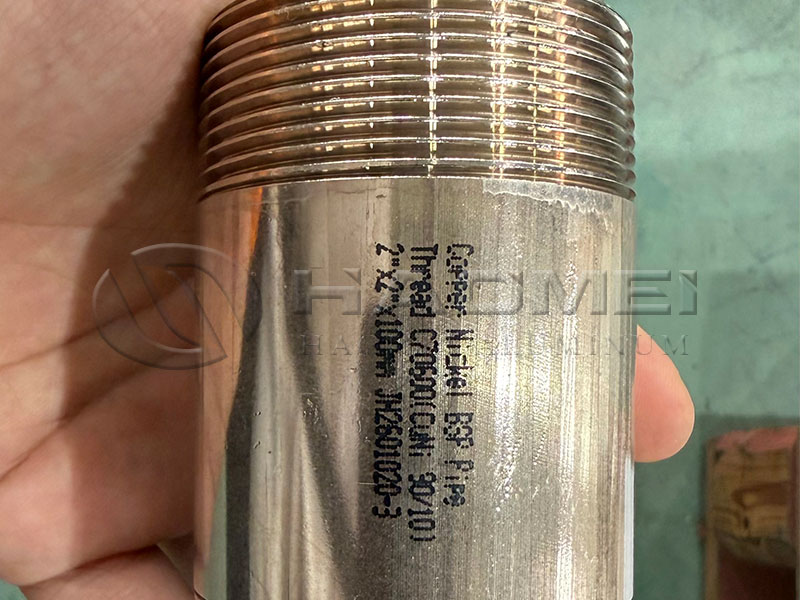

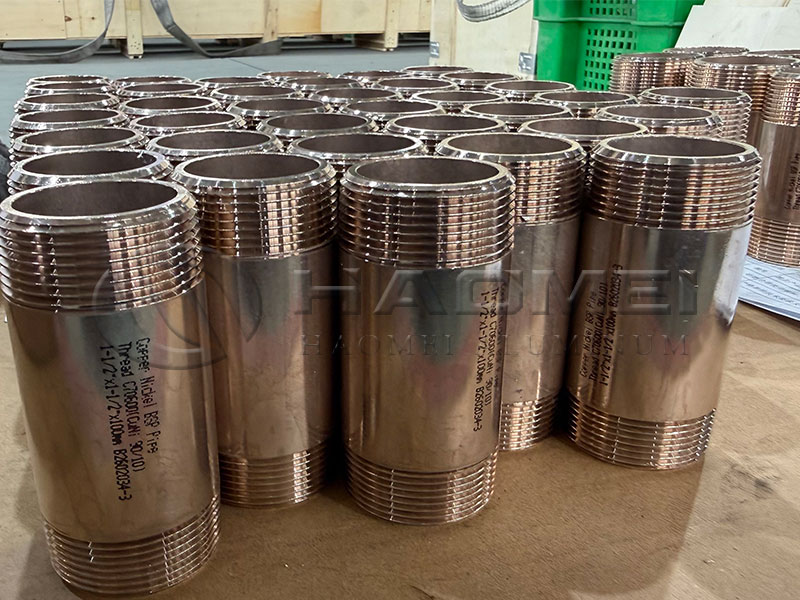

BSP CuNi Threaded Nipple
- GradeCuNi 90/10, C70600, CuNi10Fe1Mn
- Product TypeBSP male threaded nipple
- Thread TypeBSPP or BSPT, according to order requirement
- Size Range1/4" - 4" or customized
BSP CuNi Threaded Nipple is a male threaded copper nickel fitting used to connect BSP sockets, valves, unions and threaded marine piping components. It is manufactured from genuine C70600 CuNi 90/10 alloy for reliable corrosion resistance in seawater environments.
This fitting is widely used in ship repair, marine auxiliary piping, seawater drain lines, cooling water branches and offshore maintenance projects.
| Attribute | Technical Specification |
|---|---|
| Material Grade | CuNi 90/10, C70600, CuNi10Fe1Mn |
| Product Type | BSP male threaded nipple |
| Thread Type | BSPP or BSPT, according to order requirement |
| Thread Standard | ISO 228-1, ISO 7-1 or project drawing |
| Size Range | 1/4" - 4" or customized |
| Length | Standard or customized length |
| Manufacturing Process | CNC machining from CuNi pipe, tube or bar |
| Surface Treatment | Pickling, passivation and anti-tarnish oil |
| Testing | PMI, thread gauge inspection, dimensional inspection |
| Applications | Marine seawater piping, auxiliary lines, drain lines and repair work |
| Certificates | EN 10204 3.1 MTC, class inspection optional |
Product advantages
Precision BSP thread for secure installation.
Available in custom length and thread combination.
Good corrosion resistance in marine service.
Suitable for small-bore seawater and auxiliary piping.
Supplied with clear marking, thread protection and export packing.
