5083 Marine Grade Aluminum Solid Bar for Marine Frame Customization

5083 marine grade aluminum solid bar is a high-performance Al-Mg alloy product developed for vessels and structures exposed to seawater, spray, humidity, and demanding outdoor conditions. With strong resistance to saltwater corrosion, excellent weldability, and a favorable strength-to-weight ratio, it is a practical material for customized marine frames, reinforcements, brackets, rails, and structural hardware.

Unlike heat-treatable aluminum grades, 5083 achieves its performance through magnesium and manganese alloying. This composition supports dependable service in marine environments while maintaining good formability and machining potential for custom fabrication.

Why 5083 Is Suitable for Marine Frames

Marine frames must carry vibration, wave impact, equipment loads, and cyclic stress without adding unnecessary weight to the vessel. 5083 aluminum solid bar provides a balanced solution for fabricators building fishing boats, workboats, yachts, patrol craft, ferries, and offshore support equipment.

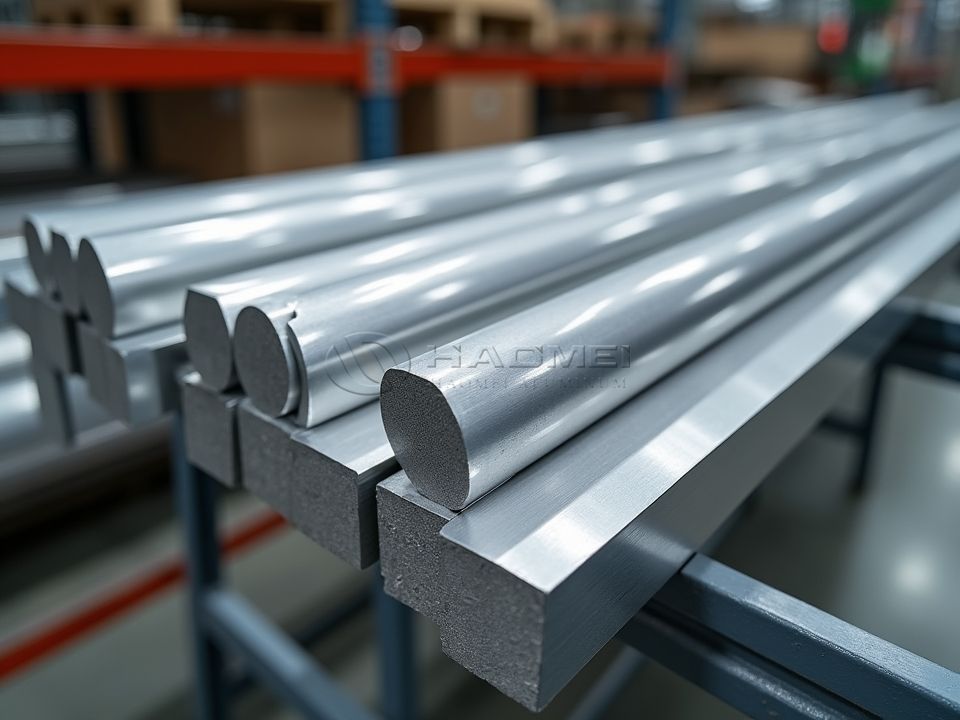

For applications requiring additional geometry options, fabricators may compare this product with other Marine Grade Aluminum Bars in round, square, flat, or hexagonal profiles.

Chemical Composition

The chemical composition of 5083 is designed to provide marine corrosion resistance and stable mechanical behavior. Magnesium is the principal alloying element, while manganese and chromium contribute to strength and grain structure control.

Technical Specifications

5083 solid bar can be supplied in round, square, rectangular, and flat-bar sections according to frame design, machining requirements, and joining methods. Available dimensions depend on production route, temper, tolerance class, and order quantity.

Mechanical and Physical Performance

Mechanical values vary with temper, bar dimensions, grain direction, and applicable standard. The figures shown are typical engineering references and should be confirmed through the material certificate for structural or class-controlled work.

Marine Frame Applications

5083 solid bar is especially valuable where a designer needs structural continuity, corrosion resistance, and a profile that can be machined into custom connection parts. It can be integrated into welded aluminum structures or mechanically fastened assemblies with appropriate isolation practices.

For designs needing a higher-strength structural aluminum option in selected dry or protected locations, 6082 marine aluminum rod & bar may also be considered alongside 5083 after reviewing corrosion exposure, joining method, and certification requirements.

Fabrication Advantages

5083 aluminum solid bar performs well in marine workshops because it can be processed into tailored components without the heavy mass associated with steel. Saw cutting, CNC machining, drilling, tapping, milling, and bending can be applied using aluminum-appropriate tooling, lubricants, and chip control.

Welding is one of the material's strongest advantages. MIG and TIG welding are commonly used for marine structures, typically with compatible 5xxx-series filler metals selected by the welding procedure. Good joint design, surface cleaning, controlled heat input, and suitable post-weld inspection help preserve frame integrity.

When fastening 5083 to stainless steel, carbon steel, or other dissimilar metals, electrical isolation is recommended. Non-conductive washers, sealants, coatings, and drainage design can limit galvanic corrosion in wet service.

Selection Considerations for Custom Orders

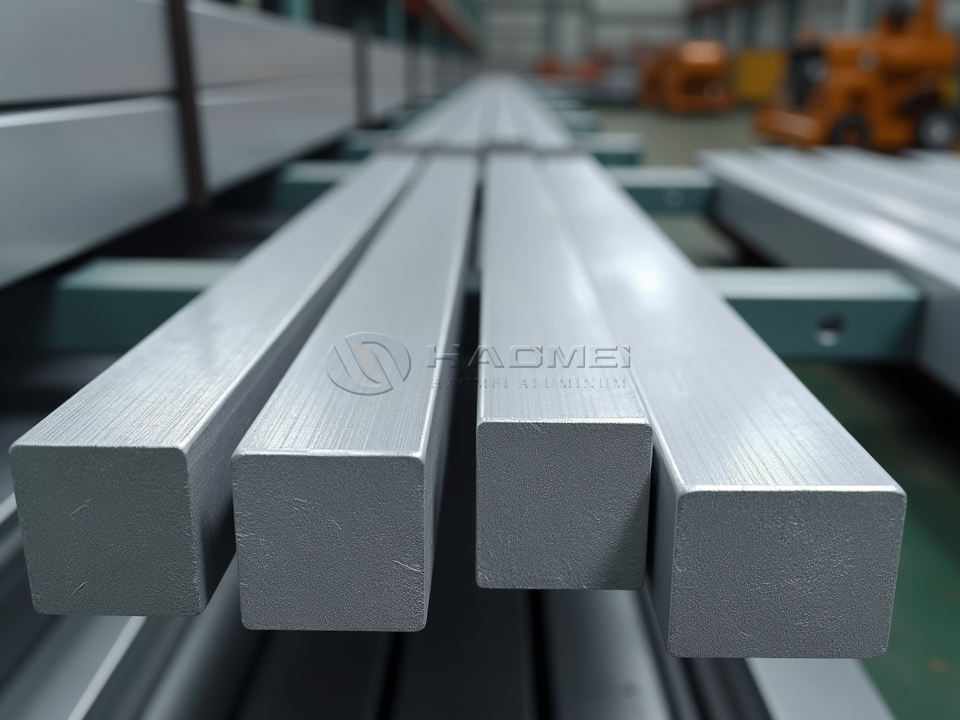

A successful marine frame begins with the correct bar profile, temper, tolerance, and finish. Round bar is often selected for machined pins, rails, and connection elements. Flat or rectangular bar suits frame rails, gussets, brackets, and local reinforcements. Square bar can simplify compact structural nodes and fabricated supports.

Customers should provide the required cross-section, length, temper, quantity, machining allowance, surface condition, and applicable marine standard. For load-bearing components, the finished design should be checked for static load, fatigue, weld-zone effects, deflection, and corrosion exposure.

5083 marine grade aluminum solid bar offers a durable foundation for customized marine frames: lighter than steel, highly resistant to seawater, straightforward to weld, and adaptable to a wide range of vessel structures and hardware designs.
