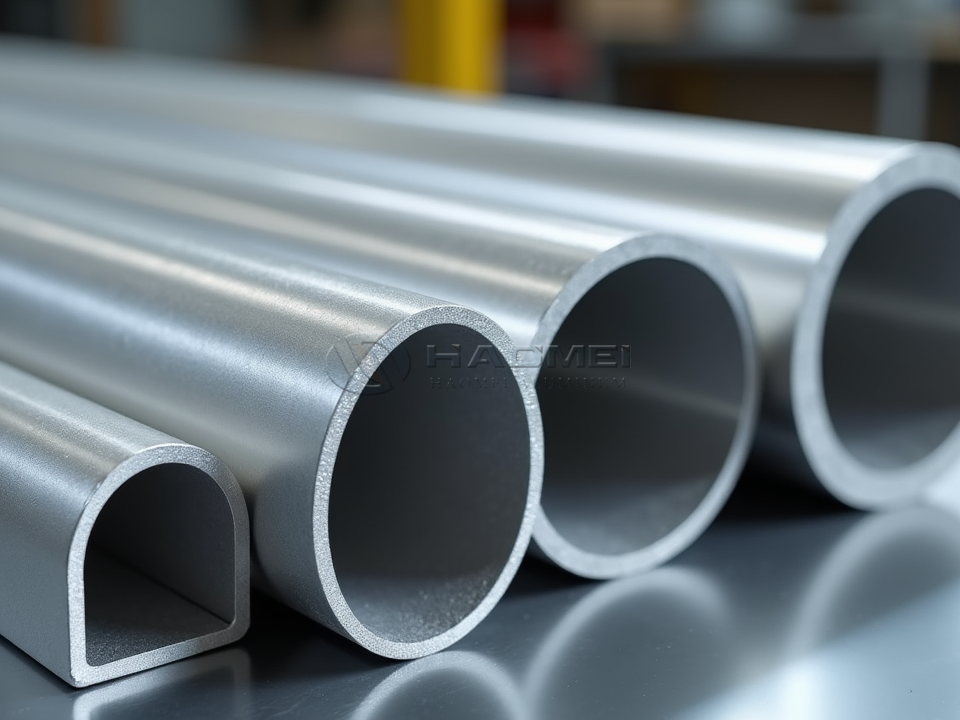

6061 6082 T6 Marine Grade Aluminum Round Pipe

A 6061 or 6082 T6 marine grade aluminum round pipe is more than a lightweight metal tube. In a boat, dock, offshore access platform, or coastal structure, its round section becomes a load path: it transfers force from rails, frames, towers, supports, and fittings while keeping weight under control. This is why round pipe is often selected for structures that must be strong in several directions at once.

Unlike flat bars that have a preferred bending axis, a round pipe offers balanced geometry. It resists bending and torsion from changing directions, an important advantage for handrails, T-tops, radar arches, canopy frames, davits, deck supports, and tubular subframes. The hollow center also provides a high stiffness-to-weight ratio, allowing designers to place material farther from the centerline where it contributes more effectively to bending resistance.

Why 6061 and 6082 Are Used in Marine Fabrication

Both 6061 and 6082 belong to the 6000-series aluminum family. They are aluminum-magnesium-silicon alloys strengthened through heat treatment. Their appeal in marine construction comes from a practical combination of medium-to-high strength, extrudability, machinability, weldability, and a naturally protective oxide film.

The phrase "marine grade" should be interpreted carefully. 6061-T6 and 6082-T6 are widely used for marine structural components, particularly above the waterline or in controlled marine exposure. For permanently immersed hull plating or heavily wetted zones, 5000-series alloys such as 5083 and 5086 are often preferred because of their stronger resistance to seawater corrosion in those conditions. For fabricated frames, rails, equipment supports, ladders, tower structures, and precision-machined connections, 6061 and 6082 are highly capable choices when corrosion control is correctly managed.

6061-T6 is commonly chosen where machinability, broad availability, and dependable fabrication are priorities. 6082-T6 generally provides higher strength and is frequently specified for demanding structural members, especially in European marine projects. The decision is not simply about alloy strength. It also depends on section dimensions, welding method, service exposure, connection design, and the required certification standard.

For projects needing standard diameters and wall thicknesses, Marine aluminum round tubes provide an efficient starting point for railing systems, deck frames, and tubular supports.

Alloy Chemistry and Its Effect on Performance

Magnesium and silicon form magnesium silicide during heat treatment, which gives these alloys their T6 strength. Manganese in 6082 supports strength and grain structure, while chromium in 6061 helps control grain behavior and contributes to corrosion performance. Copper is kept relatively low because excessive copper can reduce resistance to marine corrosion.

Chemical limits can vary slightly according to the governing specification. Material certificates should identify the applicable standard, actual heat analysis, temper, dimensions, and inspection status rather than relying only on a general alloy designation.

T6 Temper: Strength With a Fabrication Consideration

The T6 temper means solution heat treated and artificially aged. This treatment produces a high-strength condition suitable for structural pipe and tube. Typical room-temperature mechanical values for extruded material are shown here, but guaranteed values depend on wall thickness, diameter, product form, and standard.

The important engineering detail is that a welded T6 component does not retain full T6 strength beside the weld. Heat from MIG or TIG welding softens the heat-affected zone, commonly reducing local strength toward a T4-like or annealed condition. A sound marine design therefore sizes the member for the reduced welded-zone strength rather than using parent-material T6 values throughout.

This point changes how round pipe should be used. If a rail post is welded directly to a deck plate, the connection region deserves more attention than the straight pipe span. Larger wall thickness, gussets, sleeve joints, carefully positioned welds, and reduced stress concentration can improve fatigue performance. Where strength must remain high after assembly, bolted or mechanically joined connections may be preferable in selected areas.

Dimensions, Delivery Conditions, and Applicable Standards

Marine aluminum round pipe is commonly supplied as seamless or extruded hollow section. The term "pipe" is often used commercially, while "tube" may refer to a product controlled by outside diameter and wall thickness rather than nominal pipe size. When ordering, specify the outside diameter, wall thickness, length, alloy, temper, surface condition, straightness requirement, and intended standard.

Typical supply parameters include:

• Outside diameter: commonly 10 mm to 300 mm or larger by agreement
• Wall thickness: commonly 1 mm to 25 mm, depending on extrusion capability
• Length: fixed commercial lengths, cut lengths, or custom precision cutting
• Surface: mill finish, brushed, polished, anodized, powder coated, or protected for transit
• Form: extruded seamless tube, porthole-die extruded tube, or drawn tube where tighter dimensional control is needed

Common implementation standards include ASTM B221/B221M for extruded aluminum bars, rods, wire, profiles, and tubes; ASTM B241/B241M for seamless extruded aluminum pipe and seamless extruded tube; EN 755-2 for mechanical properties of extruded rods, bars, tubes, and profiles; EN 573-3 for chemical composition; and EN 515 for temper designations. Marine projects may also request EN 10204 3.1 inspection certificates, positive material identification, ultrasonic examination where applicable, or documentation aligned with class requirements.

Applications Where the Round Form Works Hardest

A round section is especially valuable when loading is uncertain or repeated. On a fast vessel, a handrail may experience passenger impact, vibration, wave shock, and cyclical side loading. On a radar arch, the pipe supports mounted equipment while resisting wind-induced movement. On a dock ladder, it must carry concentrated human load and tolerate a wet, salt-laden atmosphere.

6061-T6 round pipe is well suited to polished rails, wakeboard towers, canopy supports, marine furniture frames, equipment guards, and machined fittings. 6082-T6 is often selected for larger structural frameworks, gangways, access platforms, heavier-duty towers, and load-bearing equipment supports where higher strength can help reduce section size.

For assemblies requiring transitions, elbows can reduce fabrication time and create smoother force paths. A 6061-T6 90-Degree Marine Aluminum Pipe Elbow can be useful where rails, protective frames, and pipe systems need consistent geometry without excessive cutting and welding.

Corrosion Control Is Part of the Design

Aluminum protects itself with a thin oxide layer, but marine durability depends on avoiding trapped saltwater and galvanic couples. Do not allow bare aluminum pipe to remain in direct electrical contact with stainless steel, copper alloys, or carbon steel in wet conditions. Use isolating pads, non-conductive washers, compatible sealants, and well-drained connections.

Good detailing includes sealed or drained tube ends, avoidance of stagnant crevices, clean weld finishing, freshwater washing, and a suitable coating system where appearance or severe exposure requires added protection. Anodizing or powder coating can improve appearance and provide an additional barrier, but damaged areas and cut ends still need proper treatment.

6061 and 6082 T6 marine grade aluminum round pipe delivers its best value when specified as a structural system rather than as a simple length of metal. Correct alloy selection, verified temper, realistic welded-strength assumptions, appropriate standards, and careful corrosion isolation turn a lightweight round section into a dependable marine component.
