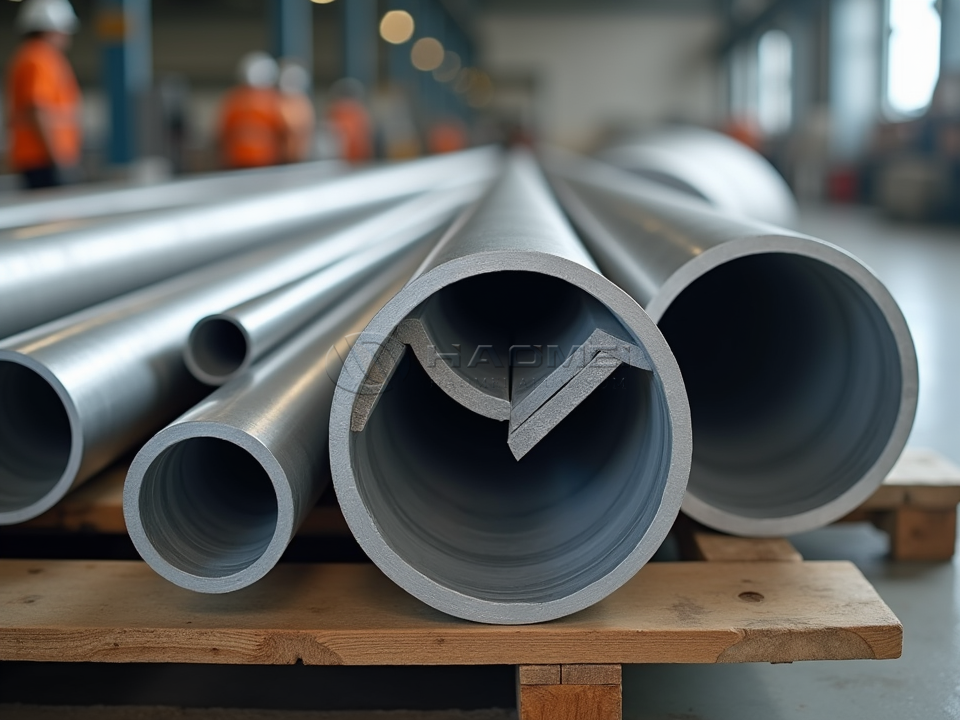

5083 Marine Aluminum Round Tubes

5083 marine aluminum round tubes are high-performance Al-Mg alloy products designed for structures exposed to seawater, salt spray, humidity, and industrial marine atmospheres. With a high magnesium content and excellent resistance to chloride corrosion, 5083 is one of the most trusted aluminum alloys for demanding boatbuilding and offshore service.

Round tubes made from 5083 aluminum combine low density with reliable structural strength, making them suitable for lightweight hull components, handrails, mast supports, deck frameworks, fishing vessel structures, and offshore equipment. Compared with steel pipe, 5083 tubing reduces vessel weight substantially while avoiding the heavy maintenance burden associated with rust protection.

Material Advantages in Marine Service

The performance of 5083 marine aluminum round tubes comes from the alloy's magnesium-rich chemistry. Magnesium improves strength through solid-solution hardening while preserving excellent corrosion behavior in seawater. Manganese supports grain structure control and contributes to stable mechanical performance.

5083 is a non-heat-treatable alloy. Its strength is developed mainly by controlled strain hardening rather than solution treatment and artificial aging. This characteristic gives fabricators dependable welded-joint behavior, particularly for marine structures where welded connections are common.

Chemical Composition

Chemical composition is typically controlled according to EN AW-5083, ASTM B928, ASTM B221, or applicable customer specifications. Exact limits can vary by standard and tube manufacturing route.

The controlled copper limit is especially important. Low copper content helps preserve the alloy's excellent resistance to marine corrosion. Chromium and manganese also help maintain a refined microstructure, supporting resistance to corrosion and improved durability in welded fabrication.

Available Tempers and Mechanical Properties

5083 round tubes are commonly supplied in O, H111, H112, H116, or H321 conditions, subject to diameter, wall thickness, production method, and certification requirement. For tubular products, H111 and H112 are widely used for fabricated structures, while H116 or H321 may be selected when enhanced resistance to exfoliation corrosion is required in severe saltwater exposure.

Mechanical values are indicative and depend on tube dimensions, temper, weld condition, test direction, and governing standard. Project specifications should always define the required minimum properties.

Tube Dimensions and Supply Range

5083 marine aluminum round tubes can be produced as seamless tube, extruded tube, welded tube, or fabricated pipe, depending on size and end-use requirements. Seamless construction is preferred for pressure-bearing or highly critical applications. Welded tube can provide an economical option for structural rails, supports, and general marine framework.

For projects requiring broader selections of Marine aluminum round tubes, dimensions and alloy choices can be matched to rail systems, structural frames, fluid-transfer lines, and fabricated boat assemblies.

Marine and Offshore Applications

5083 tubing is specified where corrosion resistance and welded strength are more important than decorative appearance. Its balance of durability and weight efficiency makes it suitable for both commercial and recreational vessels.

Welding and Fabrication Considerations

5083 marine aluminum round tubes are readily welded using 5183, 5356, or other approved Al-Mg filler metals. TIG welding is often selected for precision handrails and thinner wall sections, while MIG welding offers productivity for thicker tubes and large structural assemblies.

Although 5083 has excellent natural corrosion resistance, good design practice remains essential. Avoid water traps, provide drainage, seal crevices where practical, and electrically isolate the tube from stainless steel, copper alloys, or carbon steel when direct contact may occur in wet conditions.

Why Choose 5083 Round Tubes

5083 marine aluminum round tubes offer a practical solution for lightweight structures that must endure repeated salt exposure, vibration, welding, and outdoor service. Their strong corrosion performance reduces maintenance needs, while their low weight supports fuel efficiency, payload capacity, and easier handling during fabrication.

For marine builders seeking durable tubing with dependable weldability and long-term seawater resistance, 5083 remains a proven alloy choice for demanding vessel and offshore environments.
