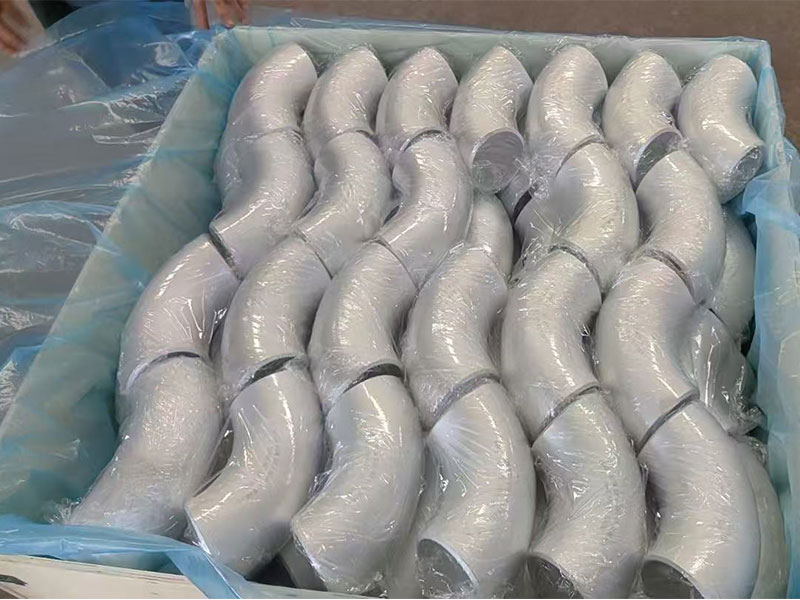

Marine Aluminum Elbow for Saltwater Intake and Pumping Systems
The demanding nature of marine environments requires materials that combine both strength and exceptional corrosion resistance. Marine aluminum alloys have emerged as the material of choice for saltwater intake and pumping systems due to their light weight, robustness, and outstanding performance in challenging conditions. Our Marine Aluminum Elbow is meticulously designed for efficient directional changes within the piping systems deployed in saltwater intake and pumping applications.
Our Marine Aluminum Elbow is an indispensable component for routing saltwater efficiently with minimal flow loss in marine pumping systems. Designed to meet rigorous industry standards, these elbows deliver reliable performance while resisting aggressive saltwater corrosion, marine biofouling, and environmental wear.
Features:
- Manufactured with marine-grade aluminum alloy
- High corrosion resistance even in continuous saltwater exposure
- Precisely engineered to minimize turbulence and pressure drop
- Available in multiple angles (45°, 90°, customized angles available)
- Lightweight—improves handling and reduces overall system weight
- Suitability verified for potable water and seawater applications
- Certified to comply with ASTM and ABS marine standards
Material and Chemical Composition
The Marine Aluminum Elbow is manufactured from aluminum alloys designed for marine applications, typically encompassing the 5xxx series alloys such as AA5083 or AA5052. These alloys offer excellent performance in saltwater environments owing to their high magnesium content and overall chemical stability.
| Element | AA5083 Typical Composition (wt %) | AA5052 Typical Composition (wt %) |
|---|---|---|
| Aluminum (Al) | Balance (typically 93.5 - 95.5) | Balance (typically 97.0 - 98.0) |
| Magnesium (Mg) | 4.0 – 4.9 | 2.2 – 2.8 |
| Manganese (Mn) | 0.4 – 1.0 | 0.1 – 0.4 |
| Chromium (Cr) | 0.05 – 0.25 | 0.15 – 0.35 |
| Iron (Fe) | ≤ 0.4 | ≤ 0.4 |
| Copper (Cu) | ≤ 0.1 | ≤ 0.1 |
| Zinc (Zn) | ≤ 0.25 | ≤ 0.1 |
Mechanical Properties
The alloys chosen for marine aluminum elbows yield a perfect balance between tensile strength and ductility while maintaining excellent resistance to corrosion:
| Property | AA5083 | AA5052 |
|---|---|---|
| Tensile Strength (MPa) | 275 – 350 | 210 – 280 |
| Yield Strength (MPa) | ~145 – 290 | ~110 – 193 |
| Elongation (%) | 7 – 18 | 10 – 22 |
| Density (g/cm³) | 2.66 | 2.68 |
| Hardness (Brinell HB) | 60 – 90 | 60 – 75 |
Tempering and Fabrication
To achieve optimum performance, Marine Aluminum Elbows undergo strict tempering and fabrication processes. Commonly, panels and pipes are formed, machined, and heat-treated under the appropriate temper specifications as enumerated below:
| Temper Designation | Description | Mechanical Effect |
|---|---|---|
| H116 | Strain-hardened aluminum alloy solution heat treated for improved corrosion resistance | High resistance to stress corrosion cracking |
| H321 | Stabilized by low temperature annealing after strain hardening | Good formability & resistance to sensitization |
| O | Annealed condition | Easily machinable but lower strength |
Fabrication incorporates precision bending or “elbow shaping” ensuring stress-free forming to prevent microcracking and maintain corrosion resistance at bending girders.
Compliance and Standards
Our Marine Aluminum Elbows for saltwater intake feature compliance with recognized marine industry standards to ensure durability and operational safety:
- ASTM B221: Aluminum and aluminum-alloy extruded bars, rod, wire, profiles, and tubes
- ISO 6361: Wrought aluminium and aluminium alloys—plates, sheets and strips for general engineering purposes
- ABS (American Bureau of Shipping) Accreditation: Assurance of component integrity under harsh marine conditions
- DUROWHEX Corrosion Testing: Certified for superior saltwater corrosion resistance
Applications
Our elbows are widely employed in:
- Saltwater intake and discharge piping systems on ships and offshore platforms
- Marine pump fed seawater cooling systems
- Ballast and bilge pumping and polish water piping
- Water treatment and fire suppression systems
- Coastal desalination plants
- Marine HVAC piping networks
Installation Guidelines and Best Practices
- Corrosion Prevention: Although marine aluminum exhibits excellent resistance to corrosion, repetitive mechanical stress combined with chloride exposure demands combining elbow installation with sacrificial anodes or cathodic protection.
- Joint Compatibility: Compatible threads or flange matching to the pipings ensure no galvanic corrosion on fitted assembly.
- Cleaning: Thorough cleaning with fresh water or specialized marine cleaning agents is recommended at regular intervals during system maintenance.
- Welding: For welded assemblies, adherence to AWS D3.6 for marine aluminum standards is mandatory, carefully controlling heat inputs to avoid depletion of magnesium at heat affected zones (HAZ) to preserve corrosion resistance and strength.
- Pressure Ratings: Matching with pumps and piping system pressure classes for the designated working temperature safeguard longevity.
Choosing our specialized Marine Aluminum Elbow guarantees not only a corrosion-resistant, lightweight and durable solution for your saltwater intake and pumping applications but also an engineered component crafted under rigorous quality standards ensuring long product life, enhanced system performance, and minimal maintenance cost within hostile maritime environments.
Contact us today for further details, specification sheets, or custom configurations tailored to your unique marine system needs.
For queries or quotations, please reach out to our engineering team with material specification requirements and application details.
