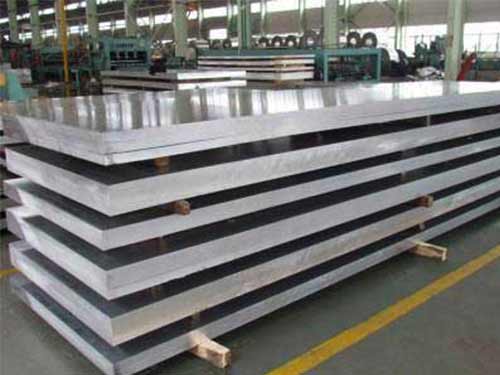

Marine 5083 Aluminum Sheet

Overview

Marine 5083 aluminum sheet (Al-Mg alloy) is one of the most trusted marine-grade materials for structures that must survive seawater exposure, heavy loading, and continuous welding. It is widely specified for shipbuilding, fast ferries, workboats, and offshore platforms because it combines high strength, excellent corrosion resistance, and reliable fabrication performance.

If you are comparing options across Marine Grade Aluminum Sheets, 5083 is often chosen when strength and seawater durability are the priority.

Key Features Customers Care About

1) Seawater corrosion resistance

5083 performs exceptionally well in marine atmospheres and saltwater splash zones. Its magnesium-based chemistry supports strong resistance to general corrosion and makes it a standard choice for hulls and superstructures.

2) High strength for lightweight structures

Compared with many general-purpose alloys, 5083 provides higher mechanical strength, enabling weight reduction without sacrificing structural safety. This is a major advantage for:

• High-speed vessels (better fuel economy)
• Payload-driven craft (more usable load)
• Offshore frames and modules (lower lifting and installation cost)

3) Excellent weldability

5083 is designed for welded fabrication. It is commonly joined by MIG/TIG methods and is widely used in:

• Hull panel assemblies
• Deck and bulkhead fabrication
• Tanks and enclosures

4) Good forming and cutting performance

Marine 5083 aluminum sheet can be cut, formed, and rolled for curved hull sections, stiffeners, and custom marine components. (Final forming capability depends on temper and thickness.)

Typical Standards and Tempers

5083 is commonly supplied in marine tempers such as:

• H116 / H321: widely used for marine plate and sheet due to good strength and corrosion behavior in seawater service
• O (annealed): used when maximum formability is needed

For customers sourcing a dedicated product specification, our Marine 5083 aluminum sheet offering can be matched to your thickness, temper, and marine project requirements.

Chemical Composition (Typical, Alloy 5083)

Note: Exact limits vary by standard and mill certification. Always confirm with the mill test report for critical projects.

Performance Snapshot (What It Means in Service)

Common Applications

Marine 5083 aluminum sheet is selected when you need structural strength plus corrosion resistance:

• Hull plating and side shells
• Decks and bulkheads
• Superstructures and cabins
• Ramps, stern doors, and access platforms
• Seawater-exposed tanks and compartments (where permitted by design codes)
• Offshore walkways, frames, and equipment housings
• Fishing vessels and patrol/workboats with high impact and fatigue demands

Quick Selection Guide

• Choose 5083 when: you need maximum marine durability + higher strength, especially for welded structures.
• Consider other marine alloys when: extreme forming, specialized fatigue requirements, or unique regulatory needs drive the selection.

What to Specify When Ordering

To receive the right marine 5083 aluminum sheet for your build, specify:

1. Thickness, width, length
2. Temper (commonly H116/H321 for marine structures)
3. Standard/Certification requirements (if applicable)
4. Surface and flatness requirements (cut-to-size, edge condition)
5. Intended service environment (continuous immersion, splash zone, interior structural)

Summary

Marine 5083 aluminum sheet is a proven shipbuilding alloy that balances strength, weldability, and seawater corrosion resistance. It is ideal for hulls, decks, bulkheads, and offshore structures where long-term performance and weight efficiency matter most.
